• Application |  Multi-Point (up to 12 points)
• Technology |  Powerful mechanical fixed-displacement pump
• Dispensing Power |  Up to 1000 PSI Can be remote mounted up to 30 ft
• Power Source |  or remote AC/DC power (call for remote options)
• Cycle |  Refillable with standard Cartridge
• LED Indicators |  Tri-color LEDs to indicate normal operation, low battery, low temp
• Weatherproof |  Suitable for outdoor, Weathercap available
• Dispensing Rate |  Standard timed intervals or custom programming available
• Includes Mounting Plate

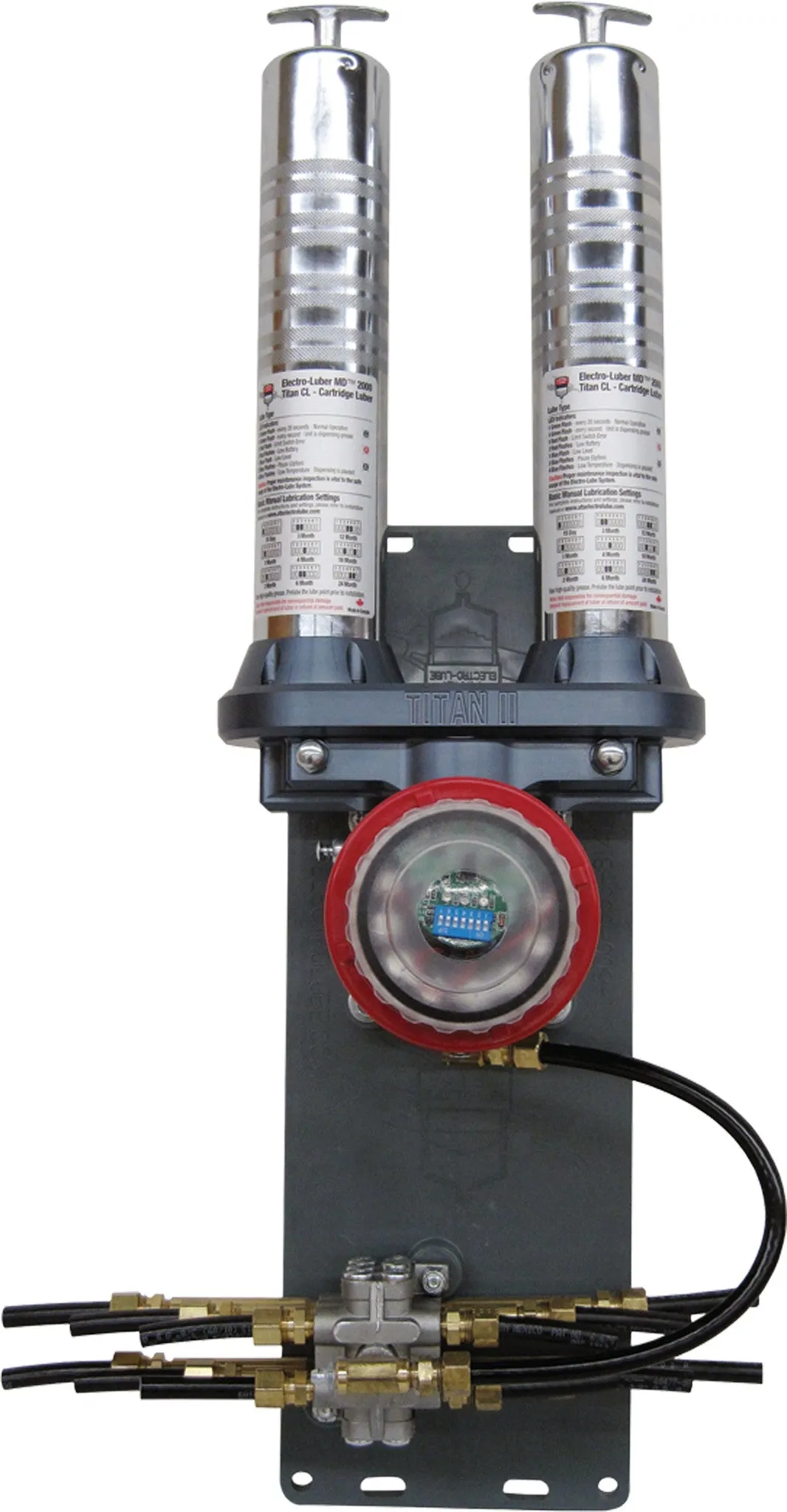

• Optional Distribution Block (shown)

Description

The Titan II CL Luber™ is a powerful, motor-driven automatic lubricator which is built on the proven Ultimate Luber™ technology. The Titan CL Luber™ is refillable by simply replacing a standard grease cartridge. Its microprocessor controlled, energy efficient motor delivers grease to a fixed displacement pump which produces pressures up to 1000 PSI. This strength allows the Titan CL Luber™ to drive lubricant through long feed lines and to cycle progressive distributors to feed several bearings consecutively. When a valid dispensing cycle is selected, the units will activate at programmed intervals. At each interval, the Titan CL Luber™ dispenses approximately 1.25cc of grease. Neither temperature nor altitude will affect the lubricant output.

Support PDF
