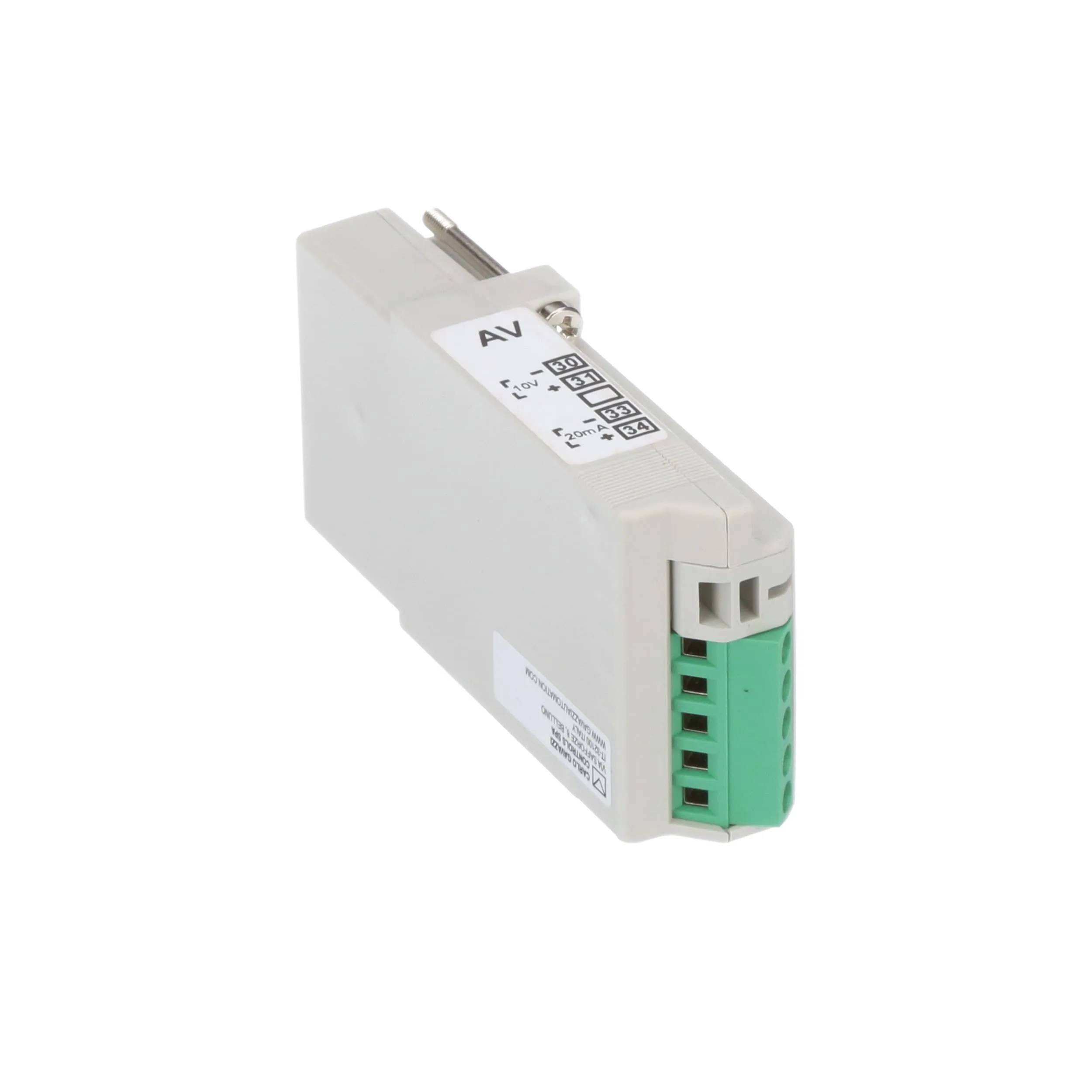

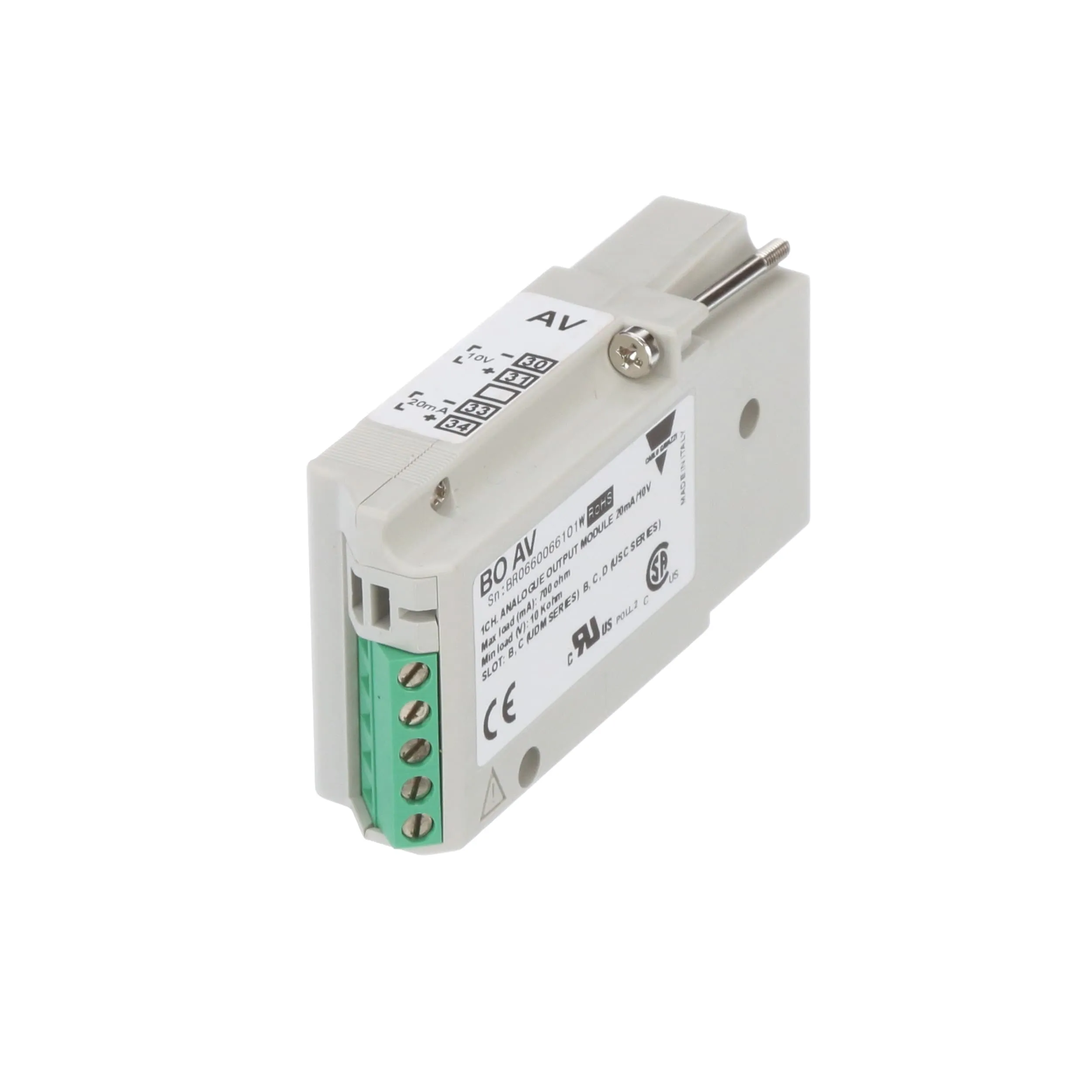

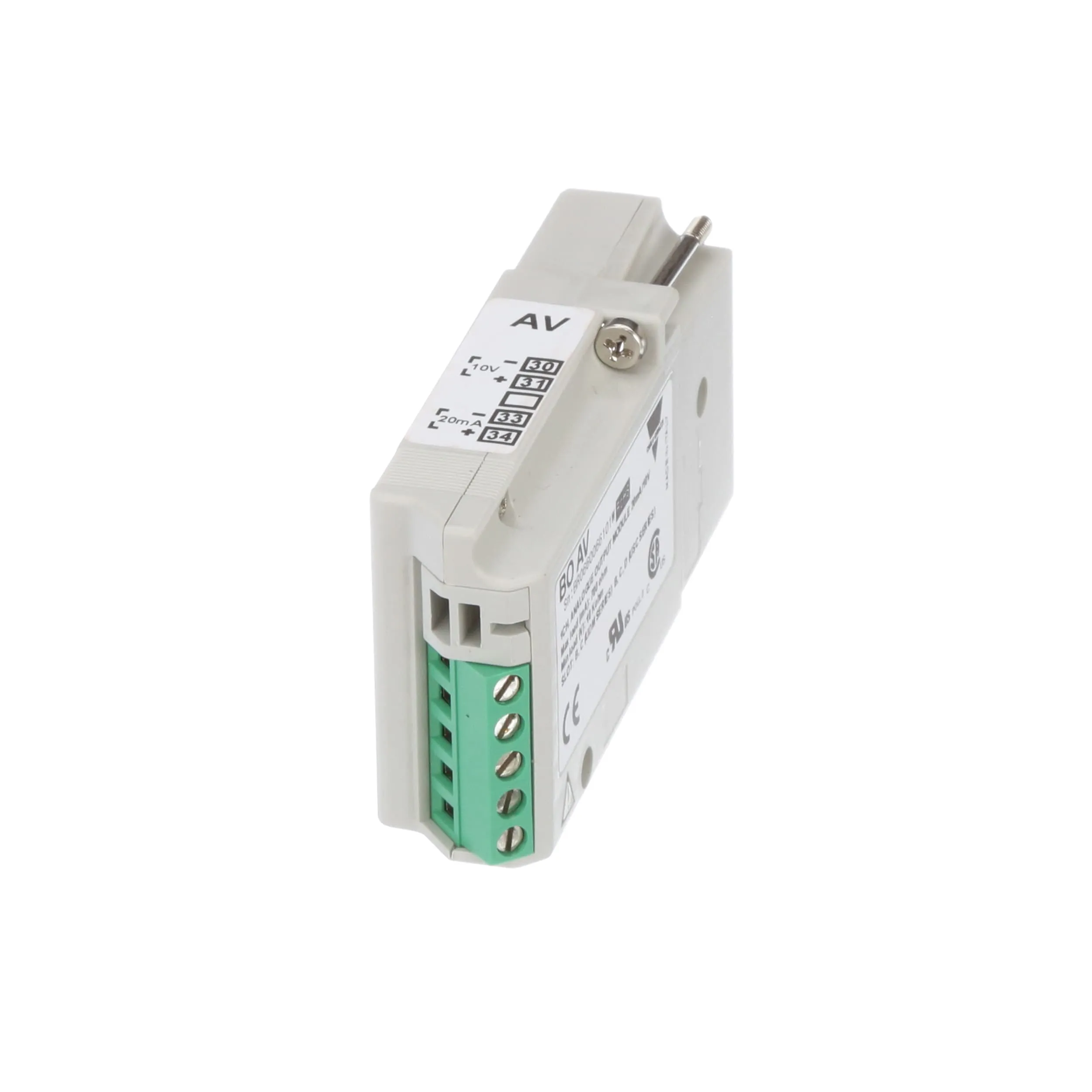

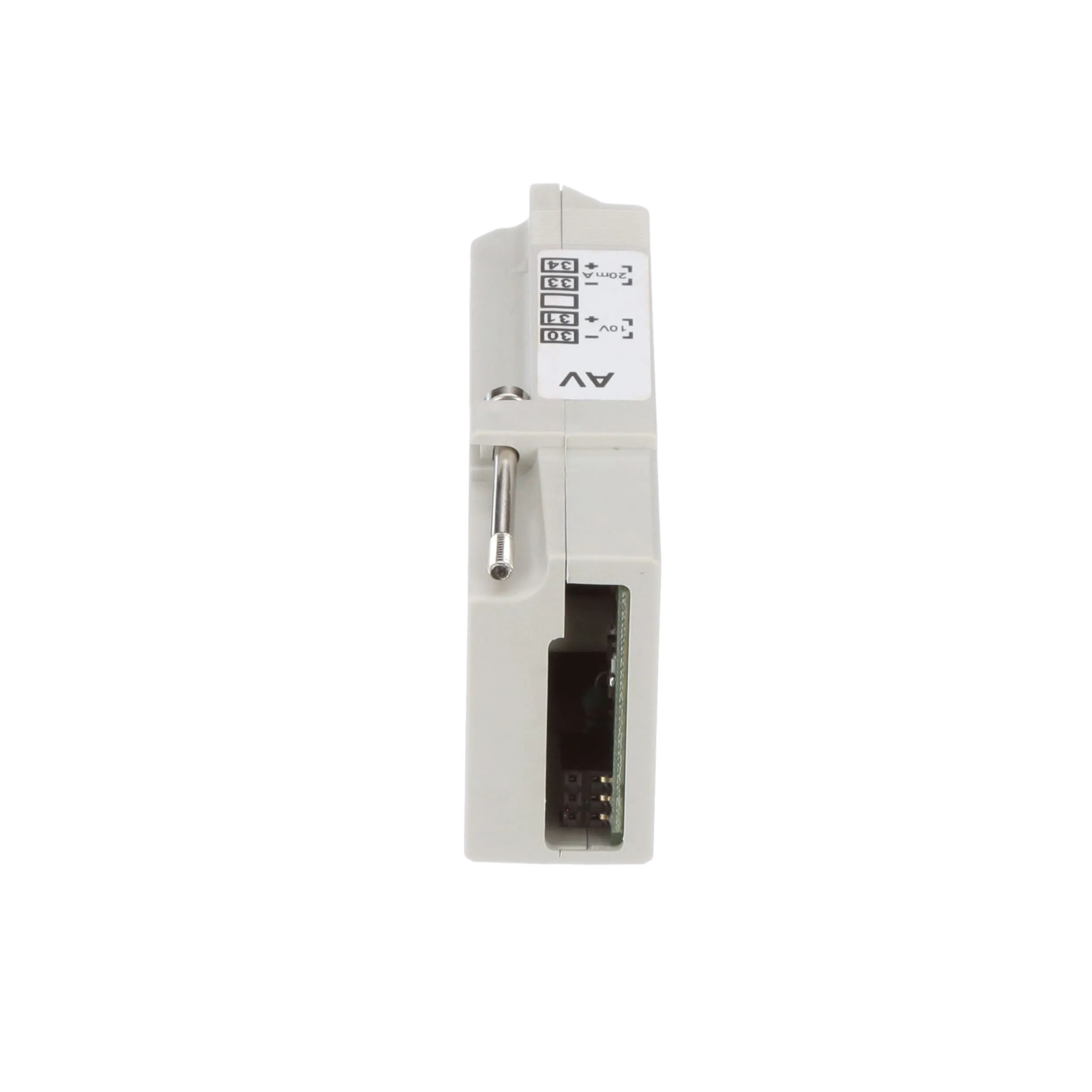

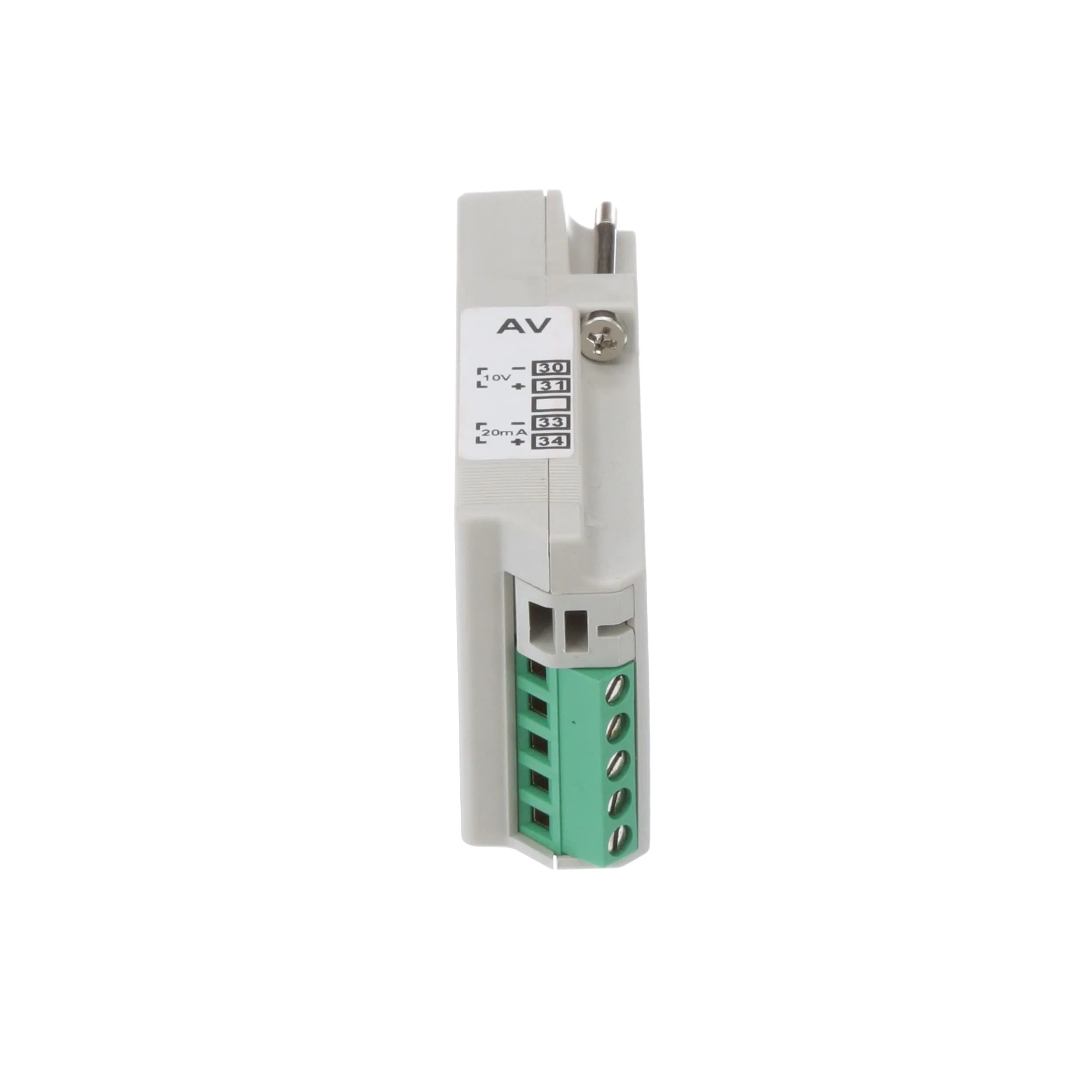

Name: Carlo Gavazzi, Inc. BOAV
SKU: 2128571

Product Details ＋

Product Attribute	Attribute Value
Accessory Type	Panel Meter
Depth	0.118" (3mm)
Dimensions	96 x 48 x 105 mm
For Use With	UDM Series Meters
Length	3.779" (96mm)
Material, Gasket	PC-ABS
Maximum Operating Temperature	50 °C
Minimum Operating Temperature	0 °C
Number of Outputs	1 Output
Output Current	0 to 20 mA
Output Type	Analog
Series
Special Features	Maximum In-Field Flexibility
Standards	UL Recognized, CSA Certified, CE Marked
Temperature Operating Range	0 to 50 °C
Type	Analog Output
Width	1.89" (48mm)

Overview

The following output cards are easily inserted into the back of the UDM Series indicators, thus making them controllers. It is possible to obtain one or two relay output(s) (not both) and/or a proportional analog or excitation output (not both).
Features:

Slide Output Card(s) into Indicator to Make a Controller

One, Two or Four 8 Amp Relay Output(s)

One or Two 8 Amp Relay Output(s) with Two Transistor Outputs

0-20 mA_DC and 0-10 VDC Analog Output

RS 485 Serial Output
