SPECIFICATION

• Driver: L298N Dual H Bridge DC Motor Driver IC
• The terminal supply area of driven part Vs: 5 V ~ 35 V; such as the need to take power within the board, the supply area Vs: 7V ~ 35V
• The peak current of driven part Io: 2A
• The terminal supply of area the logical part Vss: 5 V ~ 7 V (can take power within the board 5 V)
• The operating current range of the logical part: 0 ~ 36mA
• Control signal input voltage range:
• Low: -0.3V ≤ Vin ≤ 1.5V
• High: 2.3V ≤ Vin ≤ Vss
• Enable signal input voltage range:
• Low: -0.3 ≤ Vin ≤ 1.5V (control signal is invalid)
• High: 2.3V ≤ Vin ≤ Vss (control signal active)
• Maximum power consumption: 20W (when the temperature T = 75 °C)
• Storage temperature: -25 °C ~ 130 °C
• Driver Board Size: 55mm * 49mm * 33mm (with fixed copper pillar and the heat sink height)
• Driver Board Weight: 33g
• Other Extensions: Control of direction indicators, the logic part of the plate to take power interface

WHAT'S IN THE PACKAGE

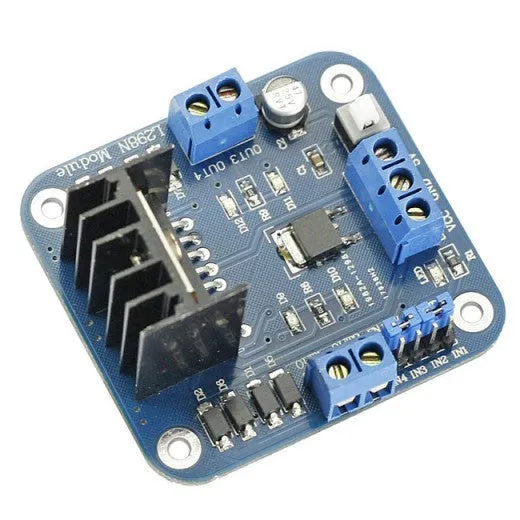

1 x L298N Stepper Motor Driver Controller Board Module
