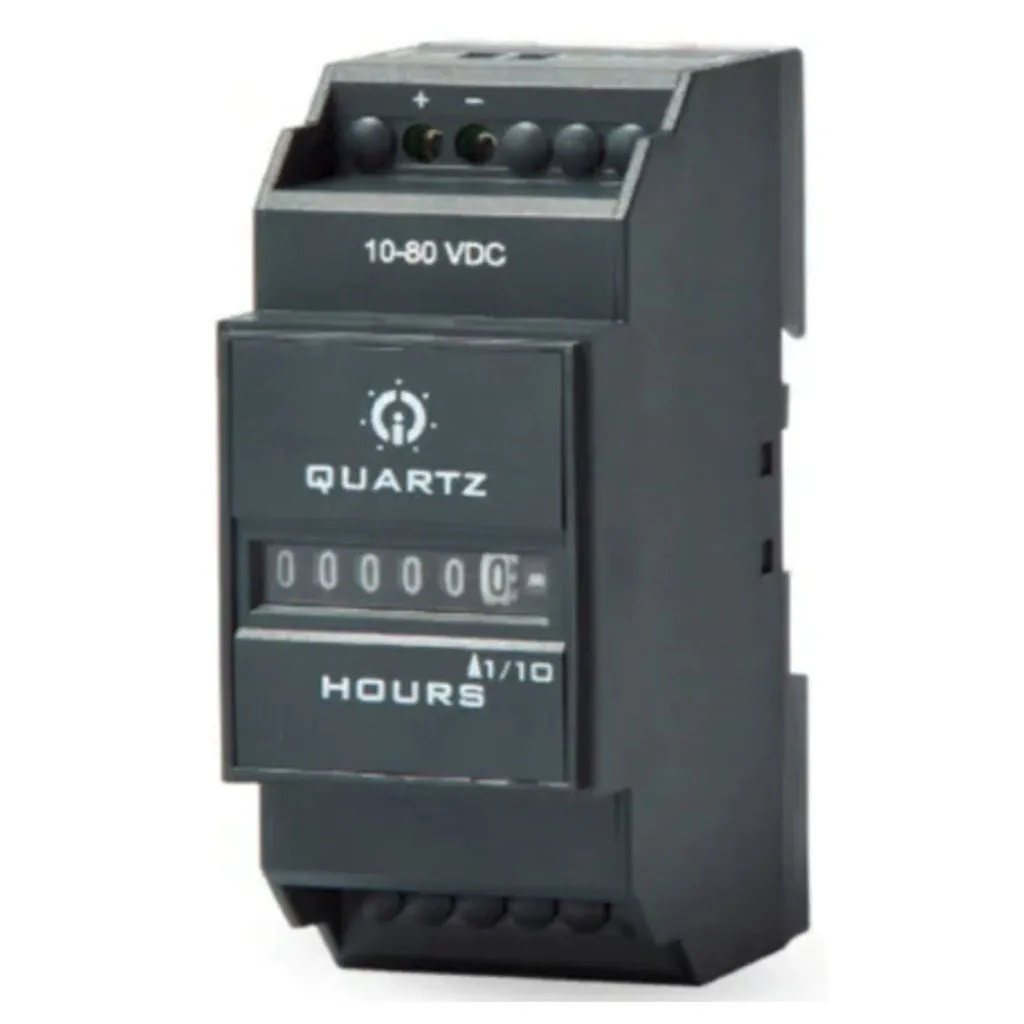

Product Description
-
Robust design with high degree of Accuracy and Compact size
-
Frequency independent for AC applications
-
Indicates operating time in hours and tenths with running indicators
-
Totally sealed from Dust and Moisture
-
6 Digit Non-Resettable with automatic recycle to zero
-
Wide supply voltage range:
-
90 - 460V AC, 10 - 80V DC & 110 V DC
-
Suitable for Control Panel applications
Product Specification
|
Brand |
GIC |
|
Product Type |
Hour Meter |
|
Model |
30A6B1 |
|
Series |
HM36 |
|
Supply Voltage |
90 - 264 / 270 - 460 VAC |
|
Power Consumption (Max.) |
1 VA Max |
|
Frequency |
50/60 Hz |
|
Bezel |
Square Mount |
|
Register |
6 Digit (3.6mm) |
|
Read Out |
99999.9 |
|
Least Count |
1/10 h |
|
Accuracy |
± 0.02% over entire range |
|
Vibration |
10-80Hz with 20g max (SAE J1378) |
|
Operating Temperature |
-5° C to 55° C |
|
Storage Temperature |
-20° C to 70° C |
|
Humidity (Non Condensing) |
95% (Rh) |
|
Degree of Protection |
IP 20 for Terminals IP 40 for Enclosure |
|
Mounting |
Panel |
|
Weight |
70g |
|
Warranty |
As Per Manufacture Terms & Conditions |
