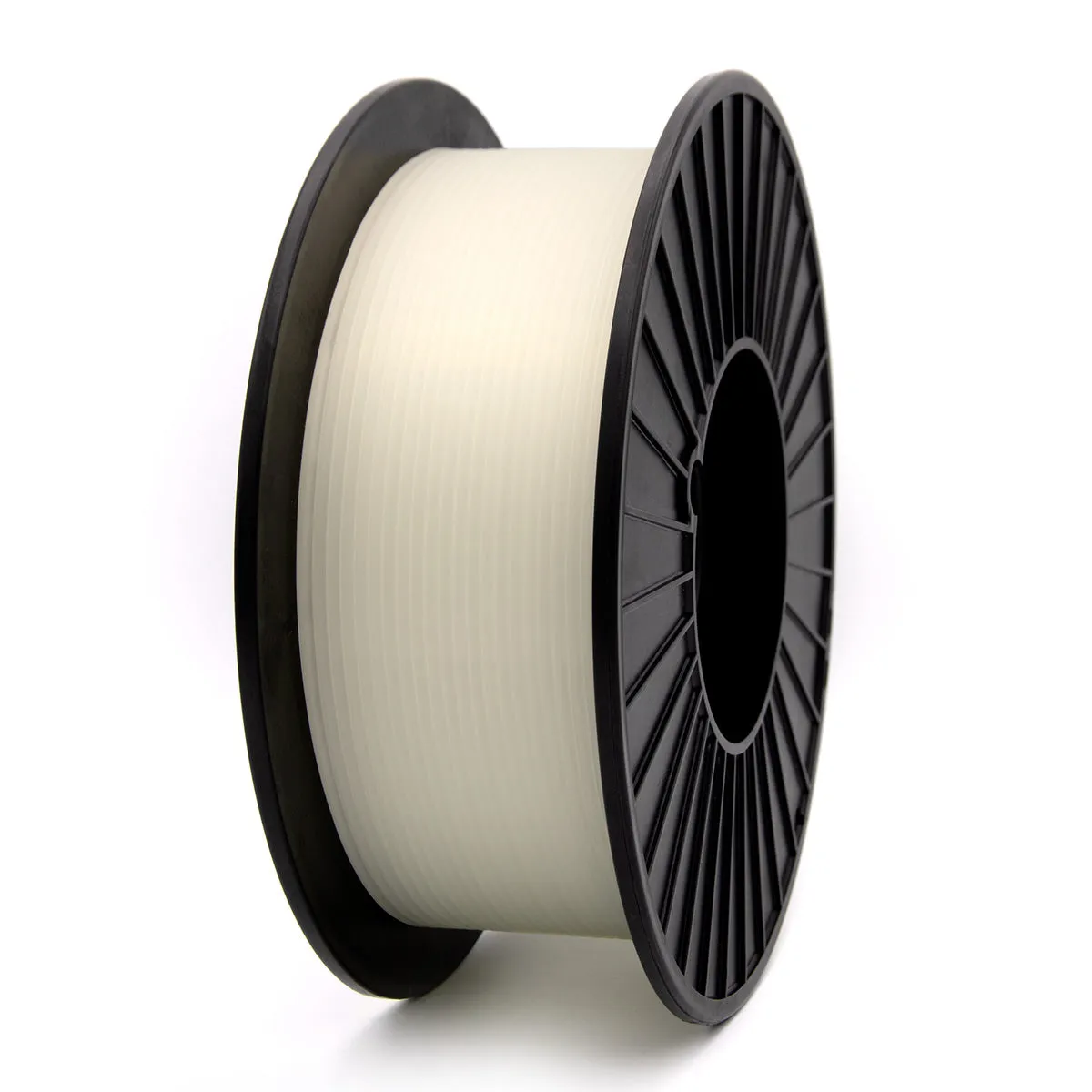

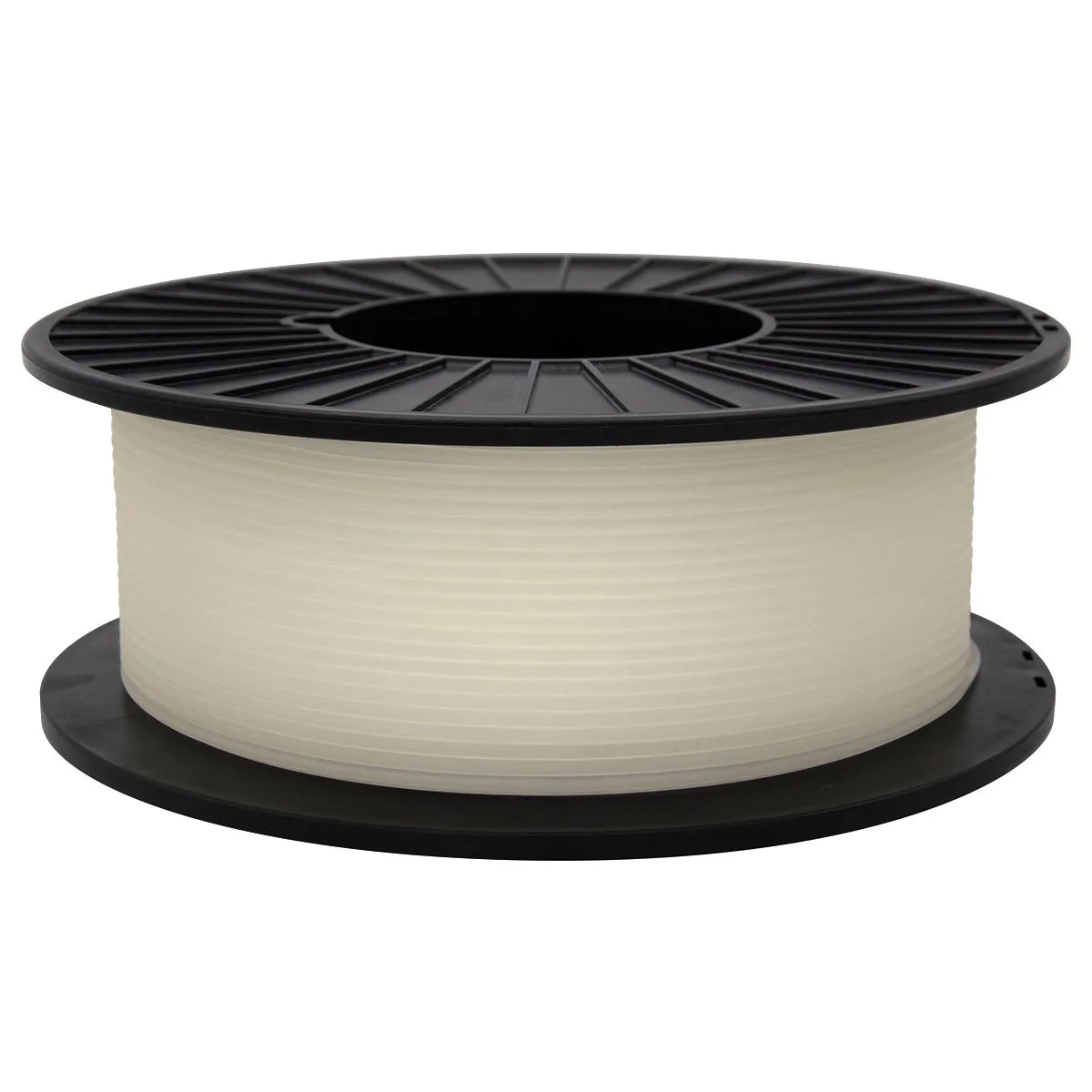

Jabil - TPU 90A - Natural

Description

Jabil Engineered Materials TPU 90 A is an easy processing, standard product for printing jobs requiring elastomeric properties like compression set or soft touch. This filament is ideal when low scratch and mar or soft touch feel are needed along with improved impact strength. It delivers rubber-like elasticity and is resistant to abrasions and performs well even at low temperatures.

Easy printability, excellent elastomeric properties and impact strength, abrasion resistance and soft touch properties. This product has very consistent lot to lot print properties with an ISO 9001 Certificate of Analysis with every spool.

Applications

Can be used for parts that need to maintain flexibility and/or require a resistance to oils, greases, and other solvents
Jigs, fixtures, and tooling
Touch pads
Grips
Sealss
Soft feet with low coefficient of friction (CoF)
No slip feet for electronic and mechanical components
Industries include

Automotive
Aerospace
General Manufacturing

Advantages

Easy printability, very consistent results
Abrasion resistance
Soft-touch properties
Impact strength
Elastomeric properties
Operating temperature range of -40° C to 95° C
Good chemical resistance to oils, greases, and other solvents

Specifications

Printing Temperature:

The optimal printing range is 220° – 230°C

Bed Temperature:

Up to 50°C

Printing Speed:

Base printing speed of 20 mm/s
Infill speed of 15 mm/s
Wall speed of 18 mm/s
Initial layer speed of 15 mm/s

Diameter(s):

2.85mm

Color(s):

Natural

Cooling:

For the best results cool to 100%

Bed Adhesion:

Use a heated build plate, brim, or PVA glue stick.

Other Tips:

Use low extruder motor tension.

Information Sheets

Print Settings

Technical Data Sheets

Safety Data Sheets

Compare Materials

Jabil Powders


	UTS (Mpa) Orientation		Tensile Modulus (Mpa) Orientation		EaB (%) Orientation		Unnotched Impact Energy (J/m) Orientation	Notched Impact Energy (J/m) Orientation	Melt Temperature (°C)
Material	XY	Z	XY	Z	XY	z	XY	XY
	46	37	1790	1130	34	12	1010	48	182
	44	46	3390	3380	6	5	221	33	181
	53	51	1305	1349	41	21	1241	83	197

Jabil Filament


	UTS (MPa) Orientation	Tensile Modulus (MPa) Orientation	EaB (%) Orientation	Unnotched Impact Energy (J/m) Orientation	Notched Impact Energy (J/m) Orientation	Melt Temperature (°C)
Material	XY	XY	XY	XY	XY	XY
	35	2730	3	235	39	N/A
	49	2660	5	822	69	188
	66	6000	4	557	191	180
	56	1930	> 100	830	62	190
	88	10600	3	525	125	190
	61	2210	6	850	51	N/A
	45	1655	24	N/A	N/A	N/A
	39	1895	8	416	49	N/A
	47	3240	6	207	31	155
	6	19	900	N/A	N/A	163
	11	93	780	N/A	N/A	165
	19	13	4540	N/A	N/A	220
