Product Details

The PCT-100 Focus Pre-heater targets heat for improved speed and efficiency for high thermal demand applications, including lead-free. Used for SMT and through-hole hand processes, the PCT-100 uses convection air heating to heat a PCB first, for better soldering, improved process control and increased productivity. The PCT-100 Focus Pre-heater adds heat volume, without turning up the temperature, to perform assembly tasks at the appropriate peak temperature without distorting the board.

Features and Benefits

  • Accelerates and enhances the lead-free SMT & through-hole rework process
  • Temperature ramps up quickly, maximizing productivity
  • Adjustable knob controls the required temperature to below 300°C
  • Controlled cool-down eliminates thermal shock to PCB and components
  • Thermocouple feedback temperature control regulates output temperature
  • System safety feature automatically shuts off heating when fan is stopped
  • ESD-safe

Product Includes

  • Focus Pre-heater
  • Arm Rest
  • Integrated Board Holder
  • Power Cord

Specifications

  • Input Voltage: 115 V
  • Heater Rating: 450W
  • Storage Temperature: -10°C - 60°C (14°F - 140°F)
  • Environmental Temperature: 0°C - 40°C (32°F - 104°F)
  • Air Flow: 10.2 cfm (280 l/min)
  • Control Temperature: Variable up to 300°C (572°F)
  • Surface Resistivity ESD: 106 Ohms - 1011 Ohms
  • Certification/Approvals: CE, cTUVus

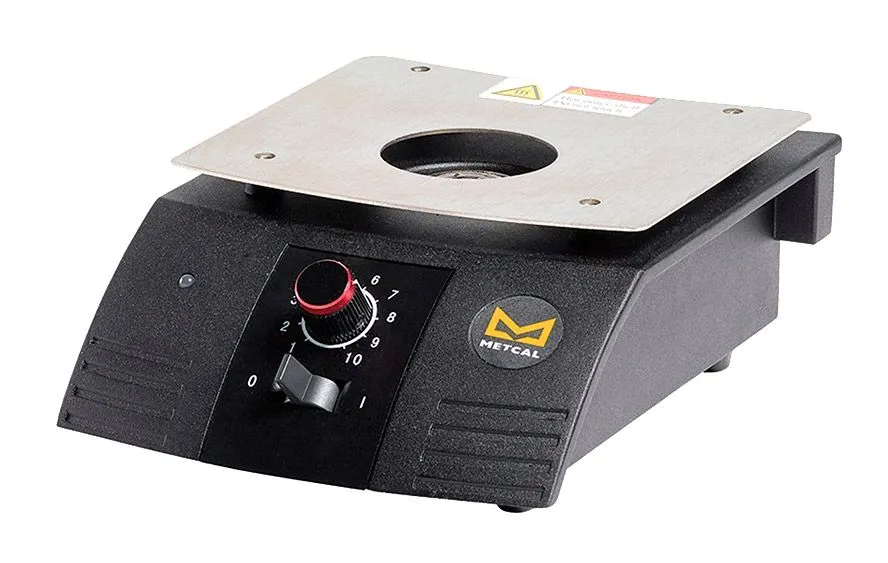

Metcal PCT-103-11 450W Convection Preheater with Integrated Board Holder & Arm Rest

$ 148.00

$ 96.00
