Product Details
＋

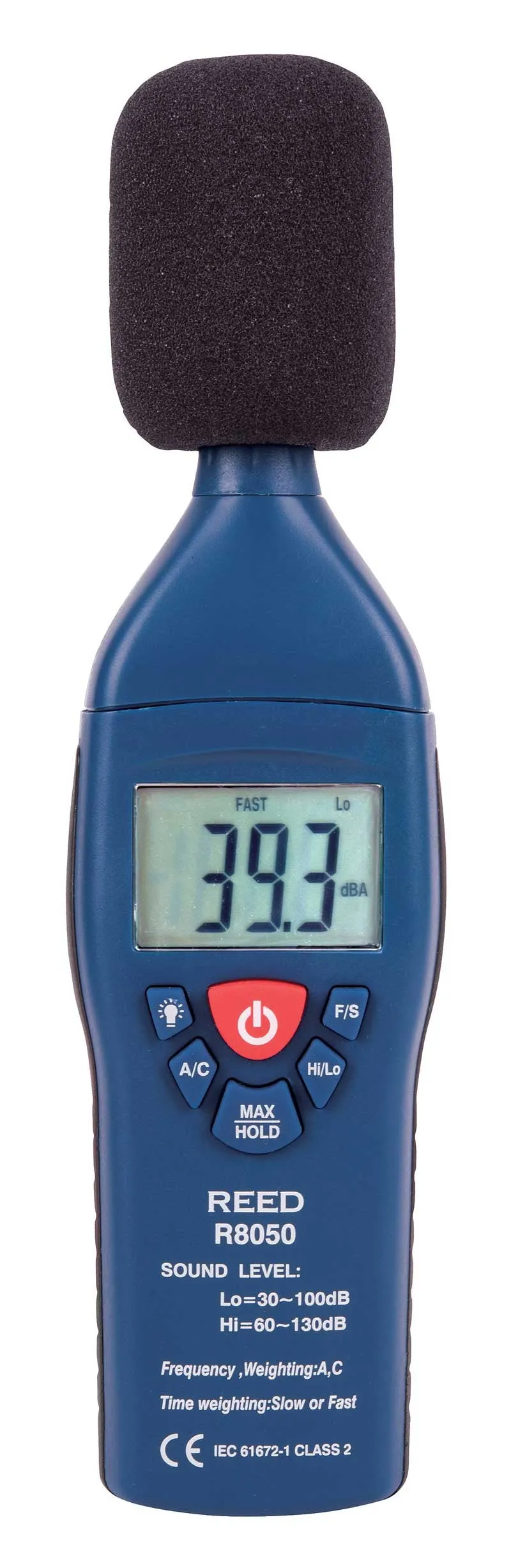

Accurate, fast responding type 2 sound level meter with backlit LCD display.
This sound level meter meets ANSI, and IEC Type 2 standards and features dual range measurement, fast & slow time weighting, data/max hold functions and a tripod mount for long-term monitoring.
Features
- High accuracy of ±1.4 dB meets Type 2 standards
- Dual range measurement (High and Low)
- A & C frequency weighting
- Fast & Slow time weighting
- Easy-to-read backlit LCD display
- Data hold and Max hold functions
- Tripod mount for long-term monitoring
- Low battery indicator and auto shut off

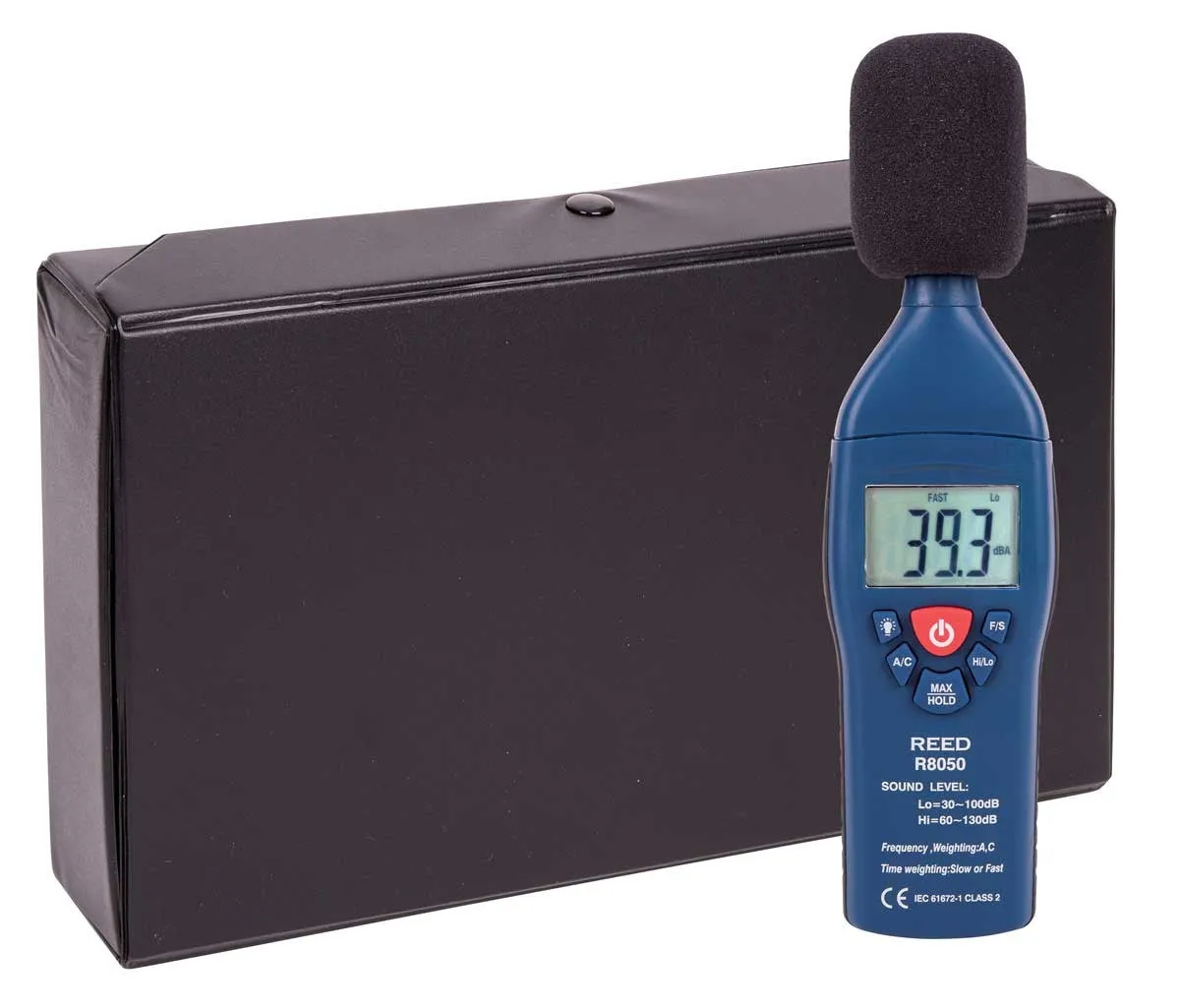

What's included with the REED R8050
- Sound Level Meter
- Microphone Windshield Ball
- Battery
- Carrying Case
Specifications
| Measuring Ranges | 30-130 dB Low: 30-100 dB High: 60-130 dB |
| Dynamic Range | 70 dB (in each range) |
| Accuracy | ±1.4 dB |
| Resolution | 0.1 dB |
| Response Time | 500mS |
| Frequency Range | 31.5 Hz to 8 kHz |
| Frequency Weighting | A, C |
| Time Weighting | Fast/Slow (125ms and 1s) |
| Microphone | 0.5" (12.7mm) electret condenser |
| Display | 4-digit LCD |
| Backlit Display | Yes |
| Data Hold | Yes |
| Max | Yes |
| Alarm Indicators | Over (visual on-screen) |
| Auto Shut-off | Yes (after 15 mins) |
| Tripod Mountable | Yes |
| Low Battery Indicator | Yes |
| Power Supply | 9V battery |
| Battery Life | Approx 50 hours |
| Product Certifications | CE, IEC 61672-1 Class 2, ANSI S1.4-1983 |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity | 10-90% |
| Dimensions | 8.3 x 2.2 x 1.3" (210 x 55 x 32mm) |
| Weight | 8.1oz (230g) |
