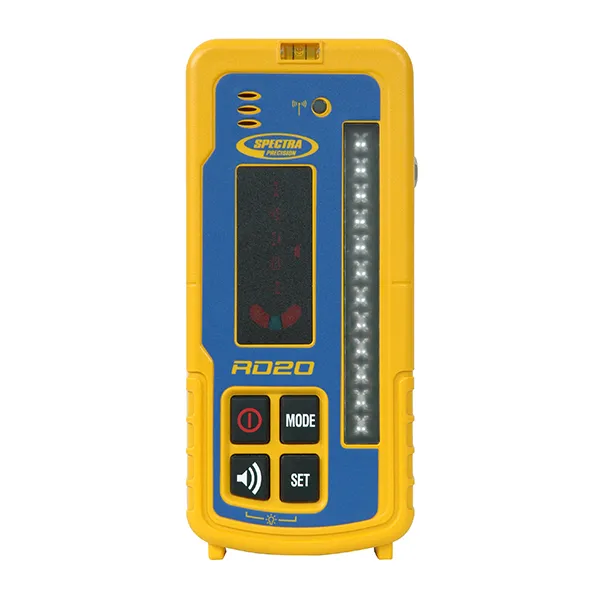

Spectra Precision RD20 Wireless Remote Display Machine Control for Laser Levels
Product overview

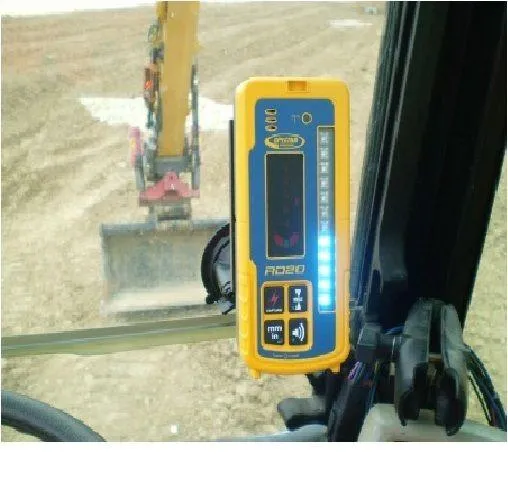

The Spectra Precision® RD20 Wireless Remote Display is designed to be used with the LR30W, LR50W, and LR60W display receivers. The RD20 mounts in the cab and gives the operator grade information in a convenient location. The operator is free to focus on the work at hand.
The RD20 wireless in-cab remote display can quickly and easily be positioned in the cab, without cables, to improve the visibility of the receiver grade information. Additionally, most receiver functions can now be controlled in the cab with the remote.
Features
- Large bright, red, green and blue elevations LEDs; different colors for High, On-Grade, and Low
- Provides in-cab display of implement elevation, plumb, and tilt
- Allows in-cab receiver settings; On-grade and blade tilt offset, accuracy, excavator mode, LED brightness
- Dual power: internal battery or machine
- Built-in speaker provides distinct audible tones for High, On- grade and Low
- State of the art digital radio prevents interference even when multiple machines working in the same area
- Multiple mounting systems include bolt-on, adhesive, swivel and suction cup.
Specifications
| Compatible Receivers: | LR30W, LR50W, LR60W |
| Radio | Full 2-way communication, operation and security lock with a paired device |
| Radio Working Radius: | 30m (100 ft) typical, depending on conditions and orientation of a paired device |
| Power Options | Internal AA batteries (2) 10-30Vdc with external power Cable Automatic switchover from internal to external power |
| Battery Life (internal): | 20 hours typical |
| Beeper Volumes: | Loud = 105 dBA Medium = 95 dBA Low = 75 dBA |
| LED Grade Indicators: | Green on-grade, red high, blue low w/ 3 brightness settings |
| Automatic Shut Off: | 30 minutes if no beam strike or loss of radio link with the receiver |
| Environmental: | Waterproof, dustproof to IP67 |
| Weight (without Mount): | 323g (11.4 oz.) |
| Dimensions (without Mount): | 168.0 x 76.0 x 36.0 mm (6.6” x 3.0” x 1.4”) |
| Operating Temperature: | -20°C... 60°C (-4°F... 140°F) |
| Storage Temperature: | -30°C... 70°C (-22°F... 158°F) |
