Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Base Style | T2 ; T3 1/4 ; Miniature Bayonet |
| Bezel | Stainless Steel |
| Body Material | Glass Filled Polyester |
| Dimensions | 1.660" L x 0.813" Dia. |
| Lamp Type | Incandescent |
| Material, Lens | High Temperature Lexan |
| Mounting Hole Size | 0.688 in. |
| Mounting Type | Panel |
| Series | |
| Supply Voltage | 125 V |
| Termination | QC Tabs |
Overview

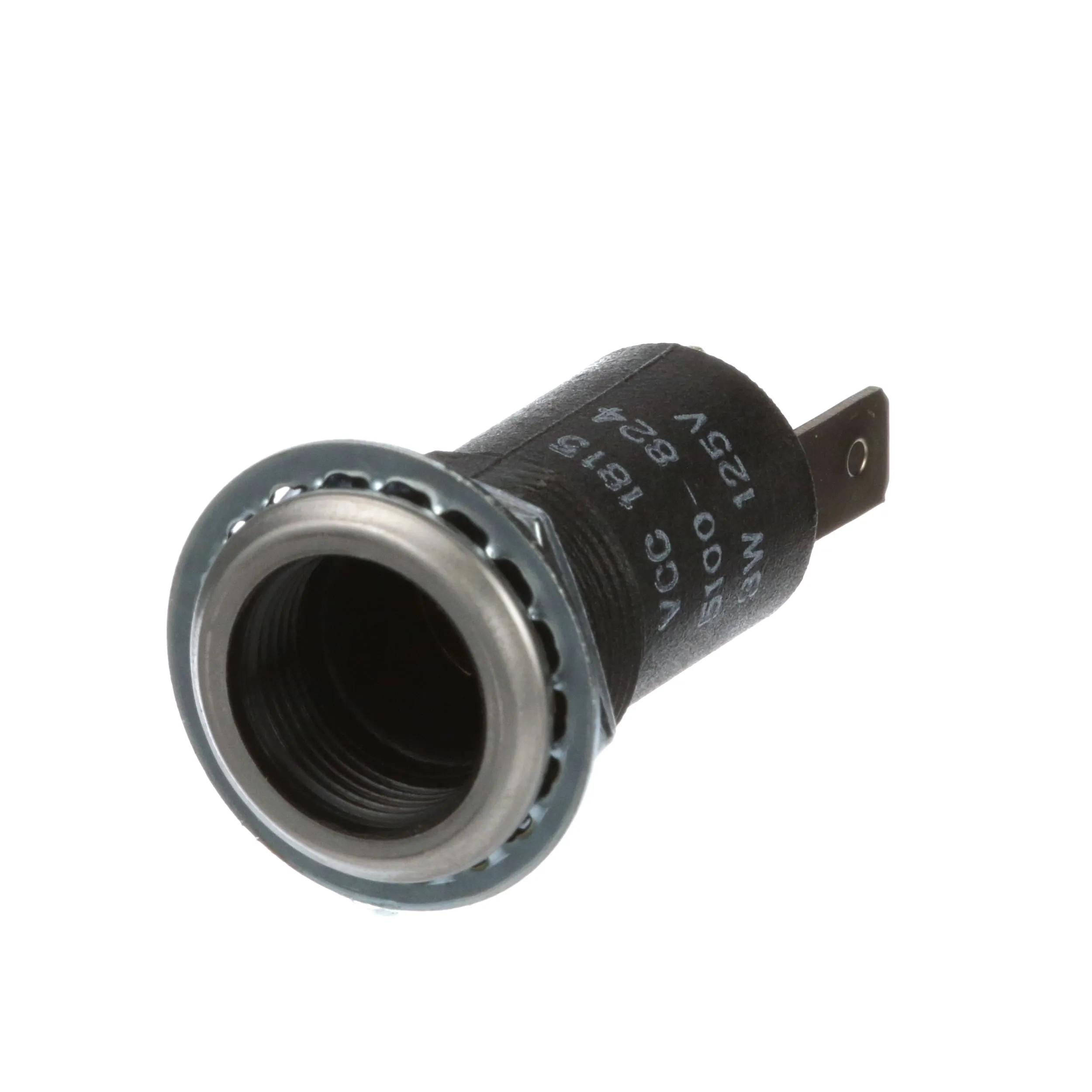

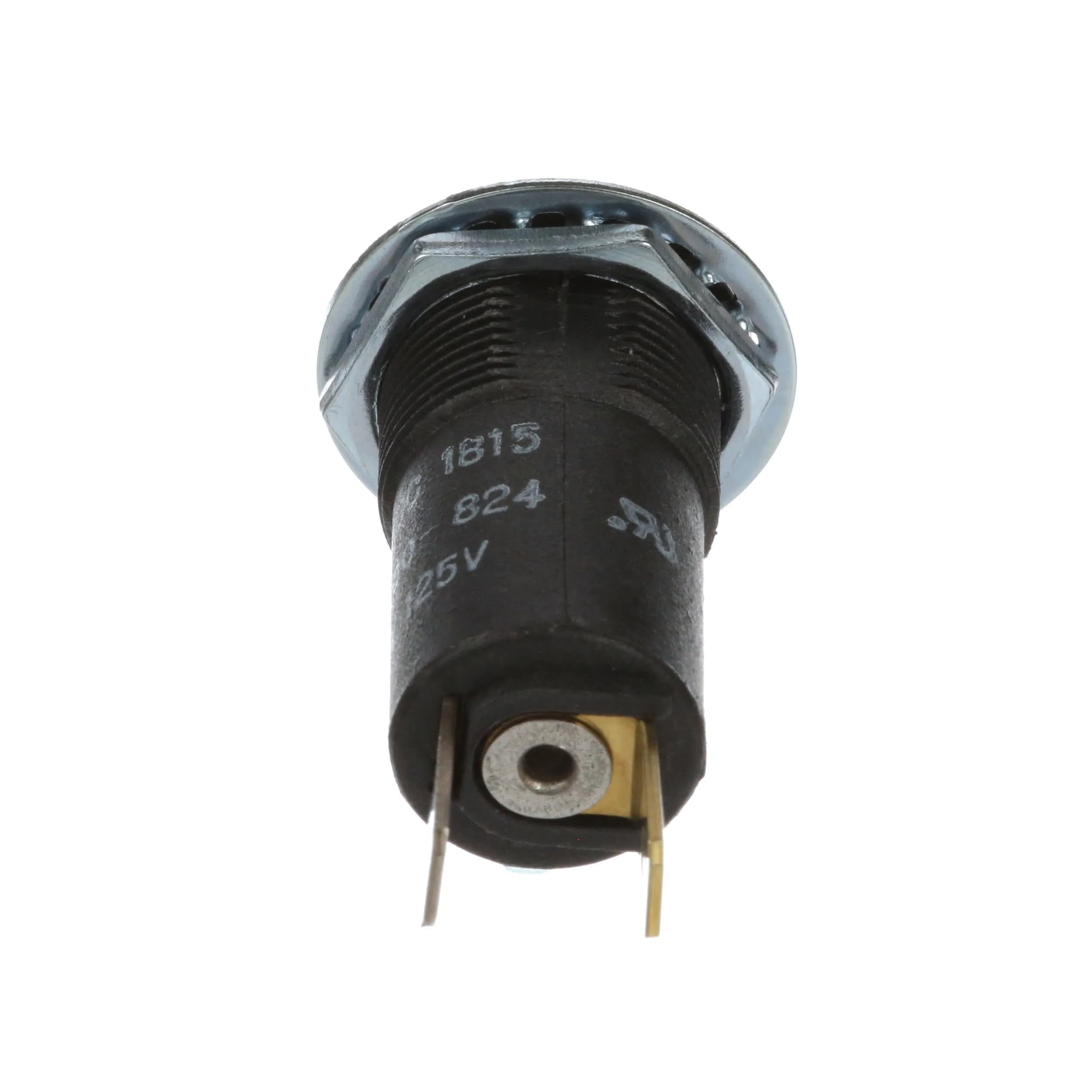

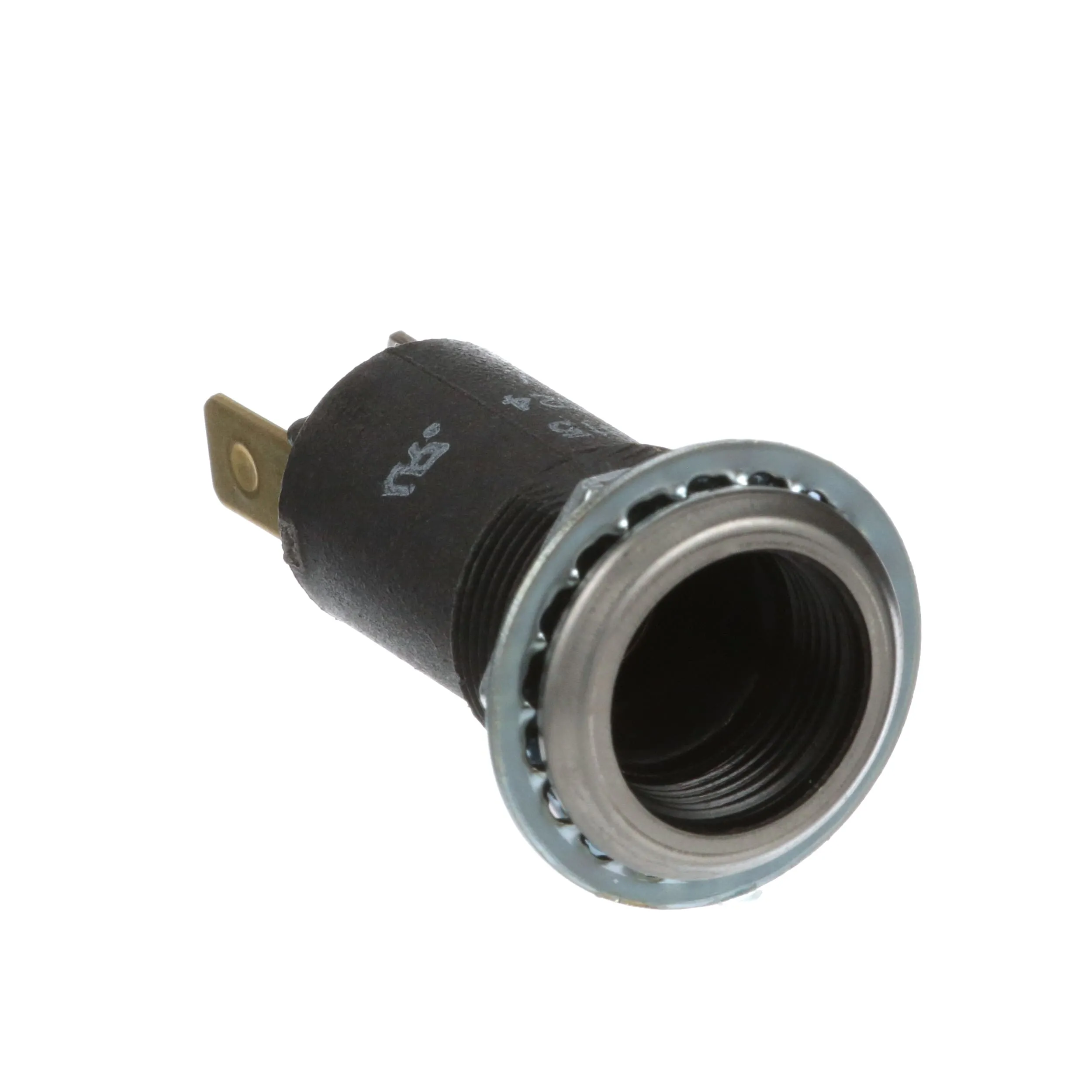

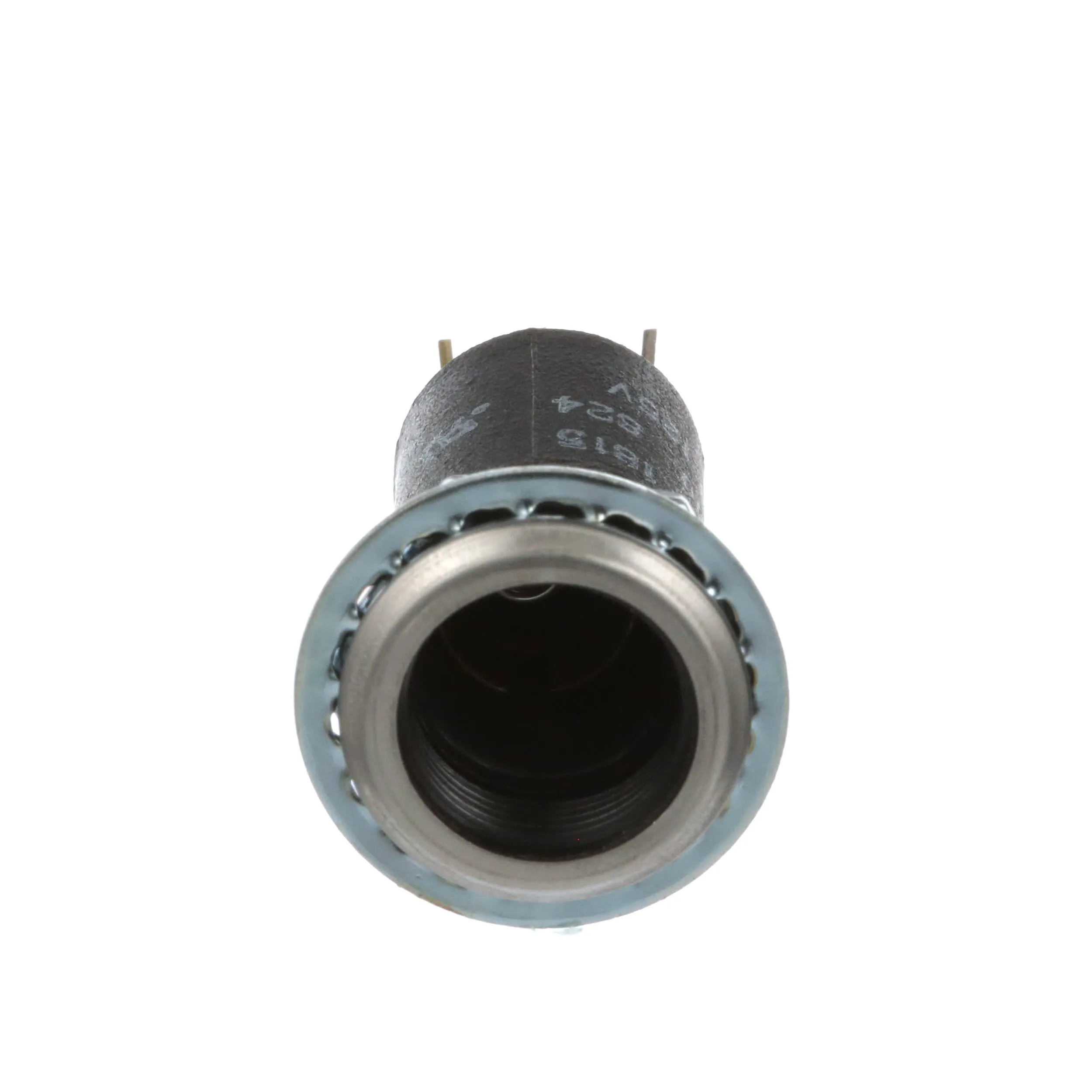

Indicator Light, Incandescent Lamp Type, Glass Filled Polyester Body Material
These lamp miniature indicator lights are versatile, industry standard, front panel indicators capable of accepting a variety of T-2 and T-3 1/4 miniature bayonet based incandescent and neon lamps.
