Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Approvals | CE, UL Recognized |
| Connection Type | Integral Plug |
| Counter Type | Totalizer |
| Cut Out, Panel | 45×22 mm |
| Dimensions | 48mm L x 24mm H |
| Dimensions, Cutout, Inches | 45 x 22 mm mm |
| Display Digit Height | 7 mm |
| Display Type | LCD |
| Frequency, Operating | 30 Hz (Max.) |
| Function | Counter, Totalizer |
| Input Type | Low Voltage, NPN Sensor, PNP Sensor, Switch⁄Contact Closure |
| Minimum Operating Temperature | -10 °C °C |
| Mounting Type | Panel Mount |
| Number of Digits | 8 Digits |
| Primary Type | Electronic |
| Product Header | Electronic Totalizing Counter |
| Series | |
| Standards | UL Recognized, CSA Certified, CE Marked |
| Supply Voltage | 18 VDC VDC |
| Temperature Operating Range | -10 to 60 °C |
| Temperature Range | -10 to 60 °C °C |
| Temperature, Opening, Maximum | 60 °C °C |
| Terminal Type | Screw Terminal |
| Termination | Screw Terminal |
| Type | Electronic |

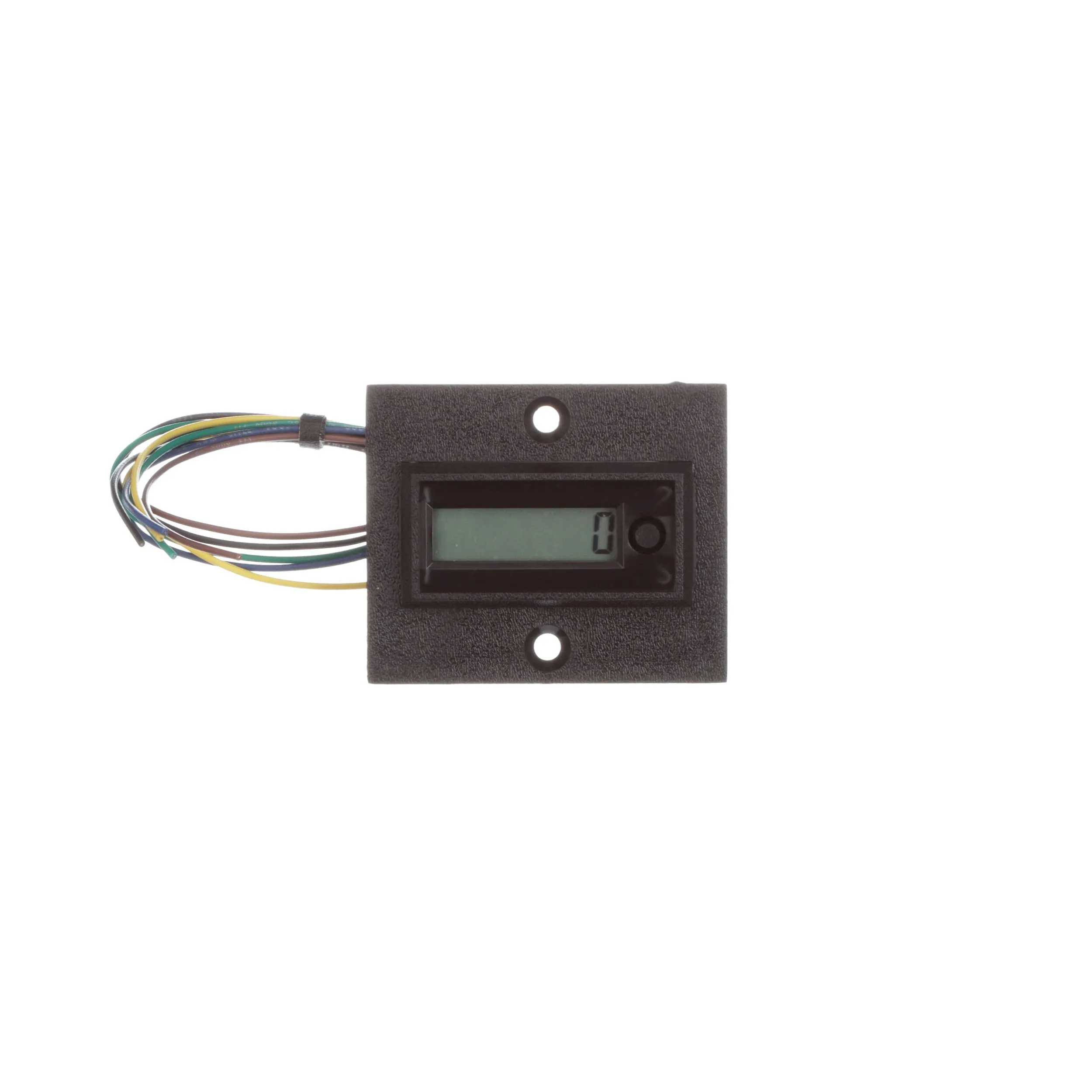

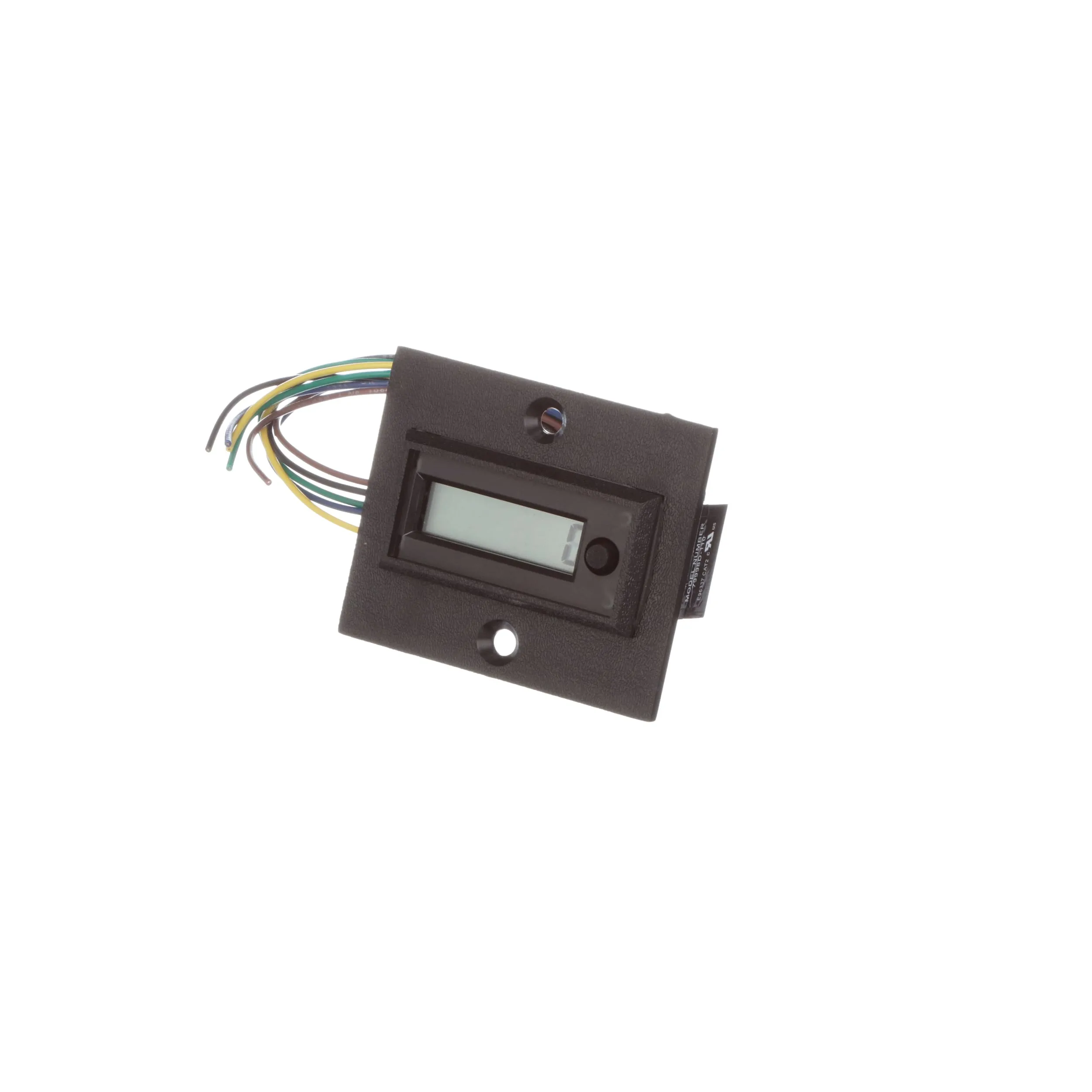

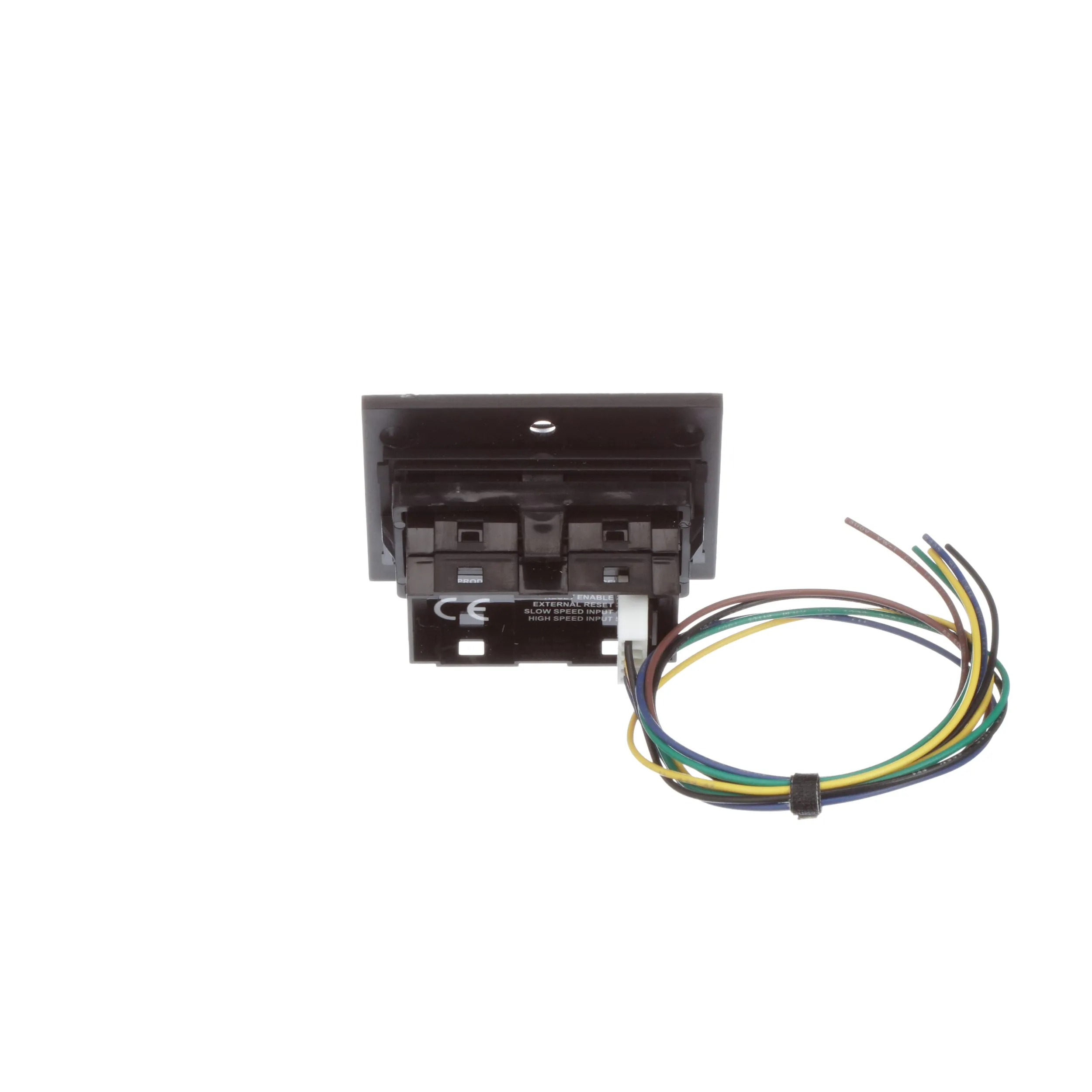

Overview
Low-cost family of compact totalizers, elapsed-time-indicators, and rate indicators with totalizer. Easy-to-read 8 mm high LCD display. Unidirectional totalizers and timer models are self-powered by a long-life lithium battery. Fast panel mounting into a 1" × 2" cut-out. NEMA-4 rated; CSA certified, UL recognized.
