Name: 7706 Keithley Switch Card New
SKU: 1155678

Product Details ＋

Additional Features:

20 channels of analog input (w/automatic CJC) for generalpurpose measurements
16 channels of digital output
2 analog outputs (±12V, 5mA)
300V, 1A capacity; 60W, 125VA maximum
Configurable as two independent banks of multiplexers
Relay closures stored in onboard memory
For use with Integra Series mainframes: 2700, 2701, 2750

Capabilities

Channels 1–20: Multiplex one of 20 2-pole or one of 10 4-pole signals into DMM
Channels 21–25 are referenced to chassis ground
Channels 21–22: 16 Digital Outputs
Channels 23–24: Analog Voltage Output (2)
Channels 25: Totalize Input

Inputs

Maximum Signal Level (Channels 1–20): 300V DC or rms, 1A switched, 60W, 125VA maximum
Contact Life (typ.): >10.5 operations at max. signal level; >10.8 operations no load**Minimum signal level 10mV, 10μA
Contact Resistance: <1Ω at end of contact life
Contact Potential: <±2μV typical per contact, 3μV max.
Offset Currenbt: <100pA
Connector Type: Screw terminal, #20 AWG wire size
Isolation Between any two Terminals: >109Ω, <100pF
Isolation Between any Terminal and Earth: >109Ω, <200pF
Cross Talk (10MHz, 50W Load): <–35dB
Insertion Loss (50W Source, 50Ω Load): <0.1dB below 1MHz. <3dB below 2MHz
Common Mode Voltage: 300V between any terminal and chassis
Temperature Accuracy using Internal CJC: 1.0°C (see mainframe specification for details)

Totalize Input

Maximum Count: 2/32–1.
Totalize Input: 100kHz (max), rising or falling edge, programmable
Signal Level: 1Vp-p (min), 42Vpk (max)
Threshold: 0V or TTL, jumper selectable
Gate Input: TTL-Hi, TTL-Lo, or none
Count Reset: Manual or Read Reset
Read Speed: 50/s

Analog Voltage Output

DAC 1, 2: ±12V in 1mV increments, nonisolated
Resolution: 1mV
Iout: 5mA max.
Settleing Time: 1ms to 0.01% of output
Accuracy ±(% of output mV): 1 year ±5°C: 0.15% 19mV; 90 day ±5°C: 0.1% 19mV; 24 hour ±1°C: 0.04% 19mV
Temperature Coefficient: ±(0.015% 1mV)/°C

Digital Output

V OUT(L): <0.8V @ Iout = 400mA
V OUT(H): >2.4V @ Iout = 1mA
V OUT(H)MAX.: <42V with external open drain pull-up
Write Speed: 50/s

General

20 Channels: 20 channels of 2-pole relay input. All channels configurable to 4-pole.
Relay Type: Latching electromechanical
Actuation Time: <3ms
Firmware: Specified for Model 2700 rev. A02 or B01, 2701 rev. A01, and 2750 rev. A01 or higher

Environmental

Operating Environment: Specified for 0° to 50°C. Specified to 80% R.H. at 35°C
Storage Environment: –25° to 65°C
Weight: 0.5kg (1.1 lbs)

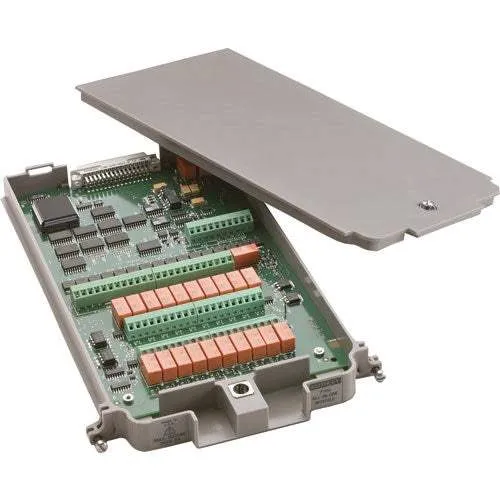

The Keithley 7706 plug-in module offers 20 channelsof 2-pole or 10 channels of 4-pole multiplexer switching with automatic CJC, as well as two analog output channels, 16 digital outputs,and one event counter/totalizer. The event counter/totalizer can be used to monitor and control system components, such as fixtures, limit switches, pass/fail indicators, external voltage sources, loads, door closures, revolutions, etc., while performing mixed signal measurements. The Keithley 7706 is ideal for RTD, thermistor, and thermocouple temperature applications.
